How to assert and Enable Radio button, Toggle Switch or Checkboxes

Article Overview:

This article will cover how you can achieve the following:

Verify the state of a Radio button, toggle switch or checkbox and enable it only if it is disabled.

Problem Statement:

A customer needs to ensure that Radio button, toggle switch or checkbox remain enabled during a test. However, the state of these toggles may vary due to previous tests or manual changes. The requirement is:

• If the toggle is Enabled, do nothing.
• If the toggle is Disabled, enable it.
• Avoid clicking a Radio button, toggle switch or checkbox that is already Enabled to prevent switching it to disable state mistakenly.



Solution:

To manage Radio button, toggle switch or checkbox, follow these steps:

1. Store the Element Details:

   • Capture the element details of the input element and store them in a variable.

2. Assert the Toggle State:

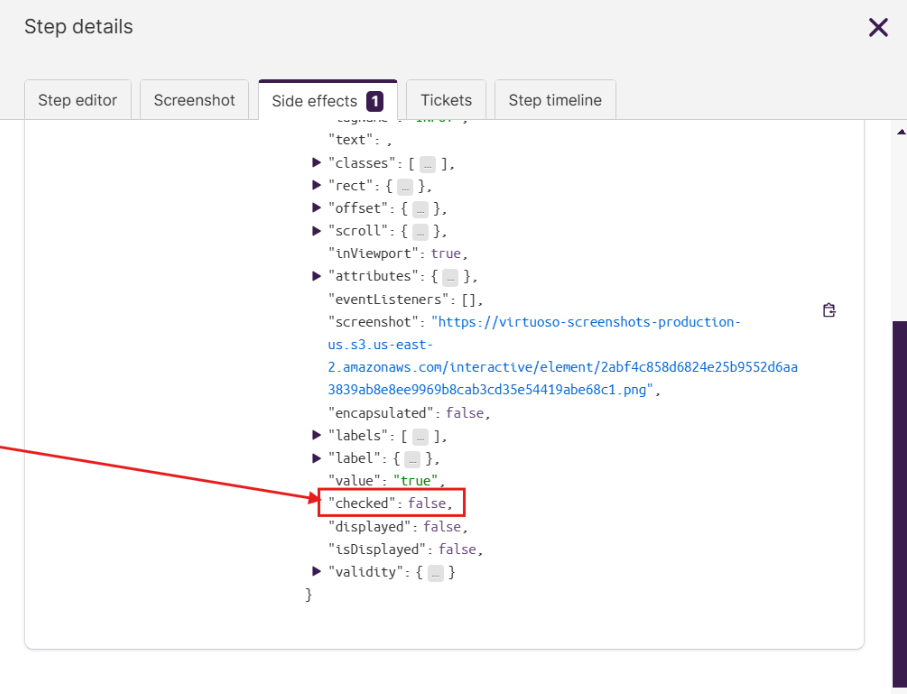

   • Check the checked property of the input element to determine whether it is True (Enabled) or False (Disabled).


3. Conditionally Click the Toggle:

   • If the checked property is false (Disabled), perform a click action to enable it.
   • If the checked property is true (Enabled), leave it unchanged.

Implementation Example in Virtuoso:

store element details of "Test Toggle" in $toggle
assert $toggle.checked equals "false"
click "Waste Tire Toggle"   -> (When to run this step)   if $toggle.checked equals "false"

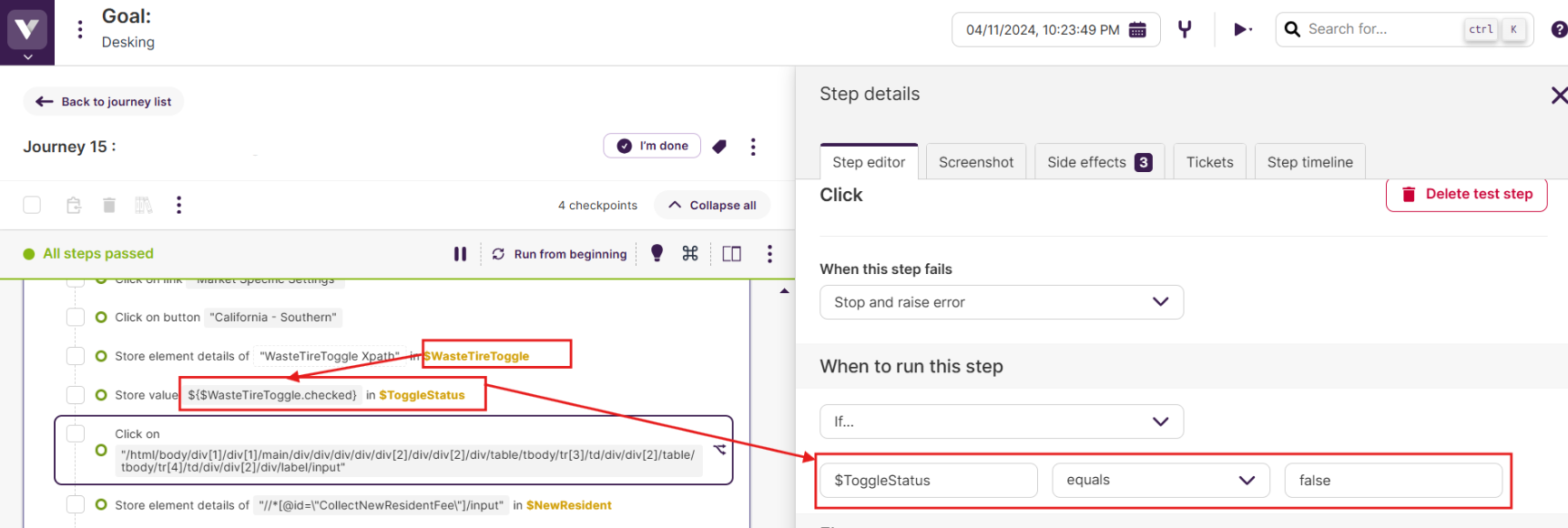

Reference Screenshot:
Here we have a breakdown of the suggested approach

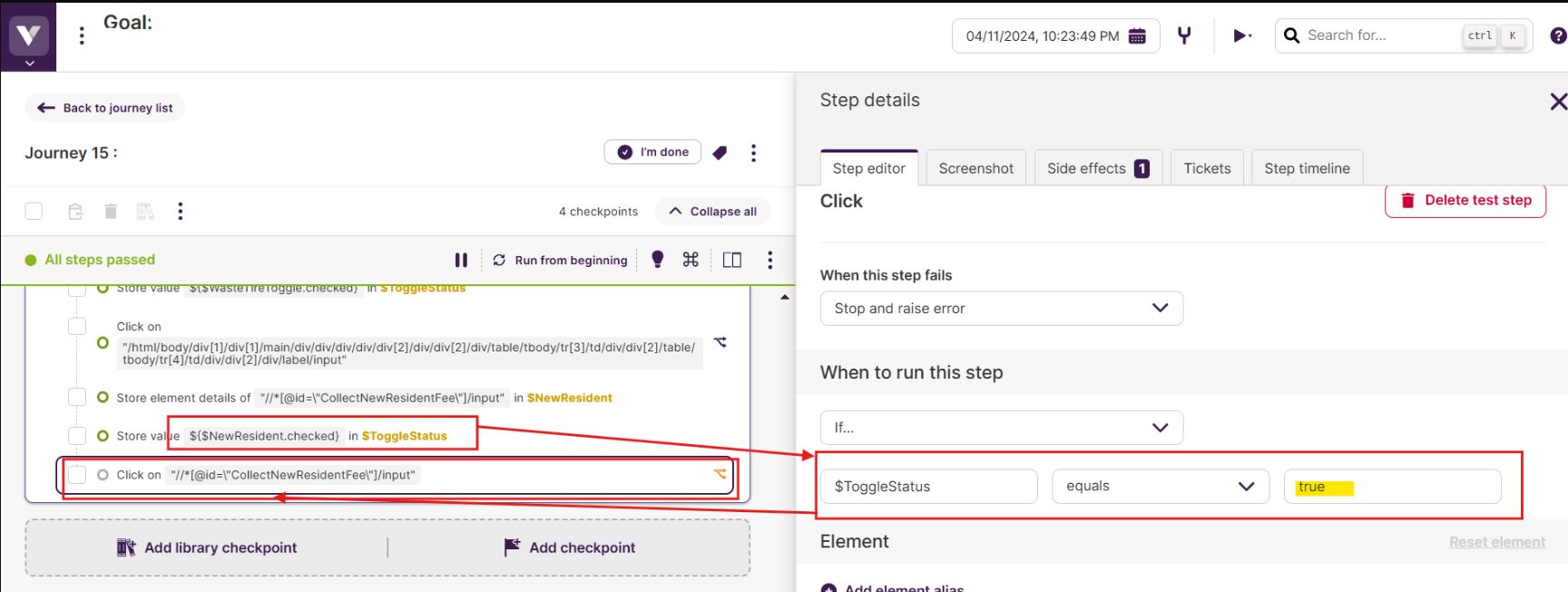

To test for any alternation in Toggle status, we observed that the step is skipped as expected, which confirms the solution works as designed.

Examples:

• Scenario: A user logs in and finds that some toggles are Disabled due to a previous test.
• Solution: The toggle switch can be assessed using the JSON parameter of the input element once we know if it’s disabled, and clicks only if necessary using the if condition.
